Expanded Metal Panel Fence

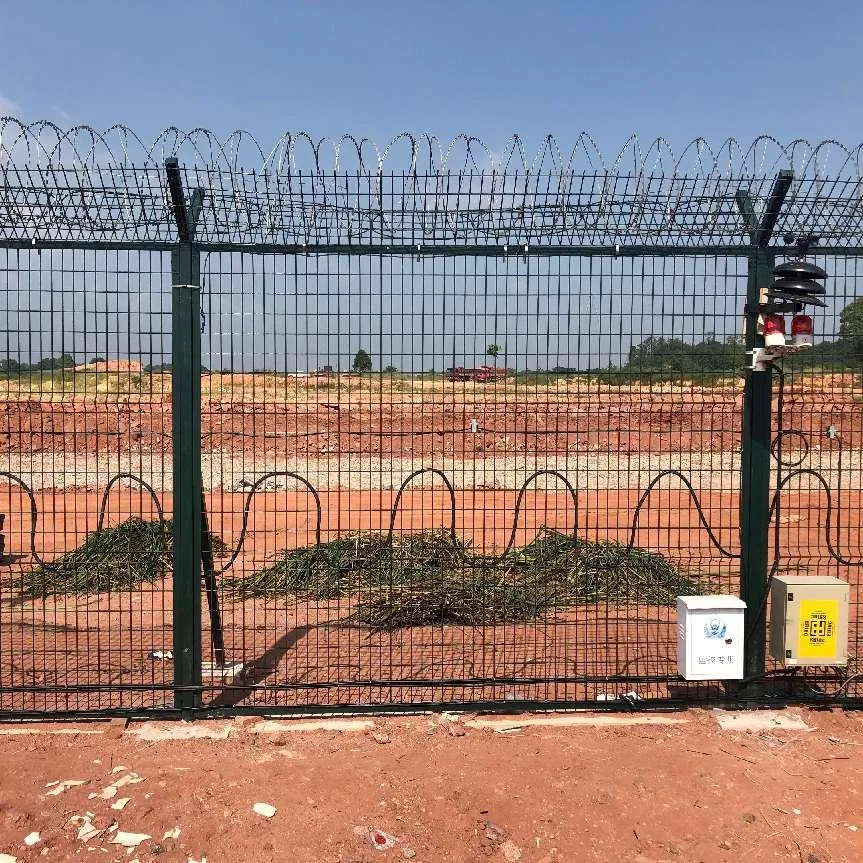

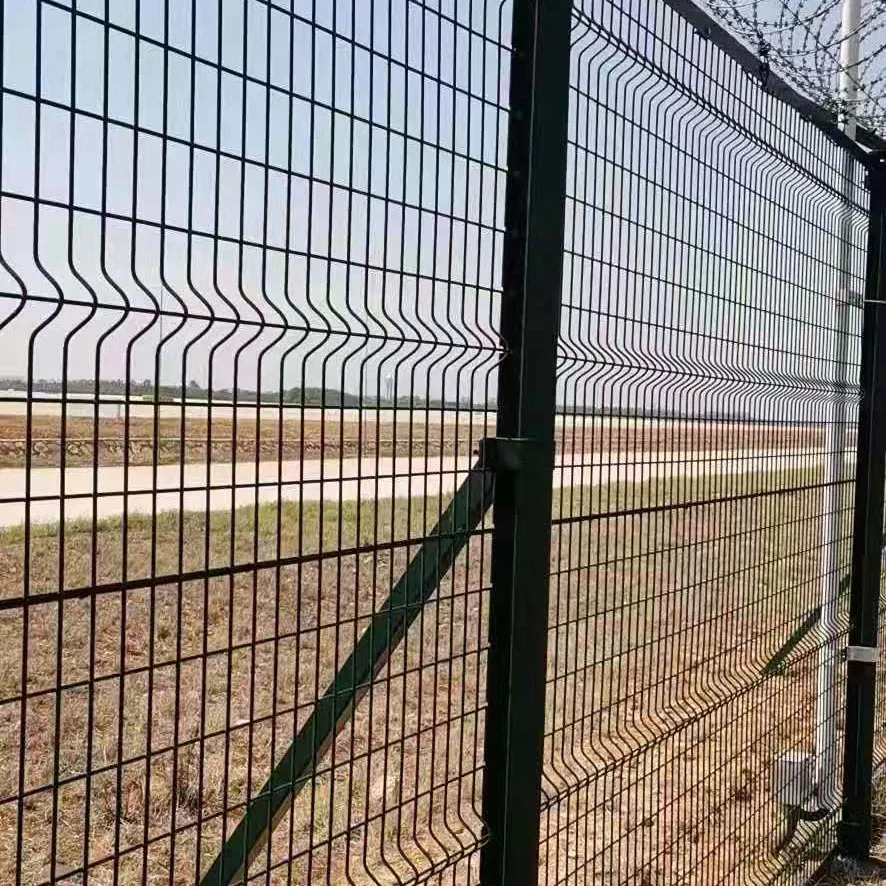

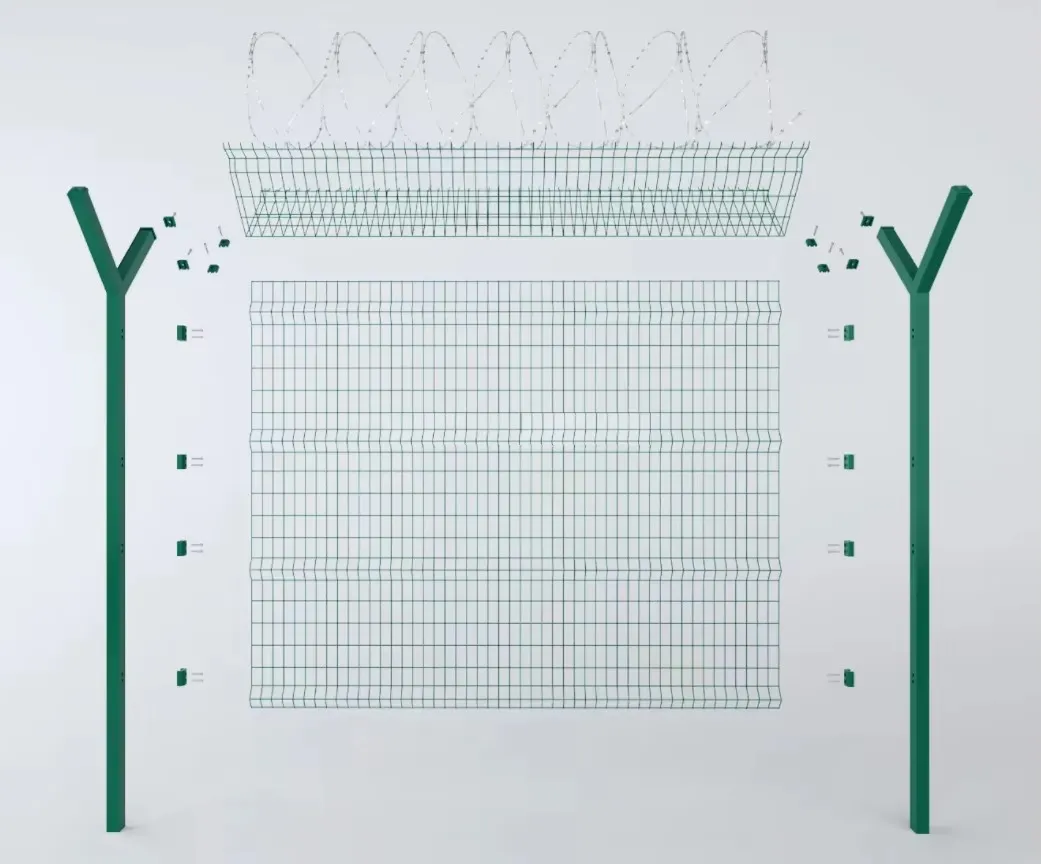

Airport Fences: Specifically designed for high-security locations such as airports and military bases. It is composed of Y-shaped support columns, reinforced welded mesh panels, connecting parts, barbed wire cages, and anti-theft bolts. The mesh panel is made of 5mm cold-drawn low-carbon steel wire, which undergoes processes of knitting, welding, galvanizing, and plastic spraying. The large mesh panel measures 2.04m x 2.88m (with a V-shaped reinforcing rib), and the small mesh panel is 0.495m x 2.88m. The aperture is either 50mm x 100mm or 60mm x 120mm. The tensile strength is 400MPa, and the tensile force of the welded points is 1320N. The Y-shaped column is made of a rectangular steel pipe with dimensions of 60x60x2mm and a height of 2.9m, which is formed by straight-seam welding of Q235 steel strips. It undergoes both internal and external anti-corrosion treatments, and a Q235 steel cap is installed on the top. The hot-dip galvanized blade barbed wire has an outer diameter of 500mm. The material is Q235 cold-drawn low-carbon steel wire that is galvanized and then combined with hot-dip galvanized blades (wire diameter BWG12# - 14#, blade type BTO - 22). The installation types include cross-type and spiral-type. There are 33 coils per roll, with a standard coverage length of 5.1m and a weight of 10kg per roll. The connecting steel plate has dimensions of 66x30x4mm, made of Q235 steel, and treated with galvanizing and plastic spraying. The anti-theft bolt set (carriage bolt) is M8X30, made of Q235 material, and treated with hot-dip galvanizing.

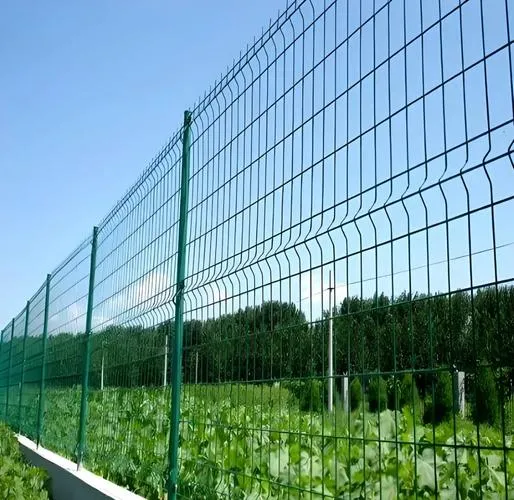

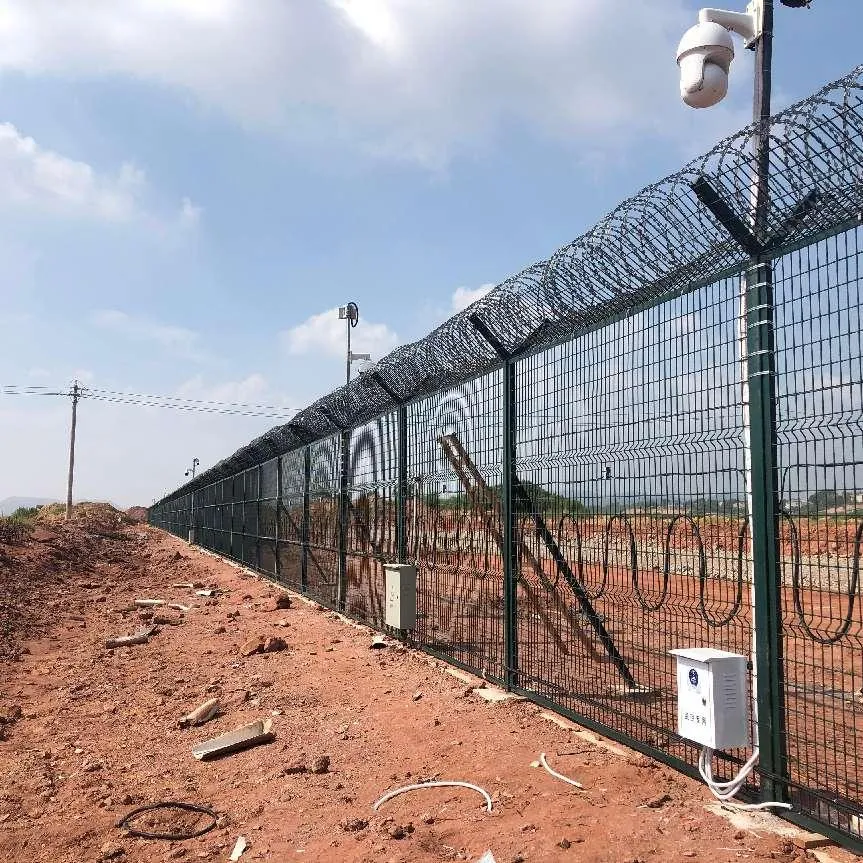

Y-Shape security fences
It is reinforced with V-shaped support arms and welded mesh panels or chain link fencing, safety fittings and hot-dip galvanized concertina razor mesh, resulting in a high level of strength and safety.
|
Fence panel height |
2.03m, 2.23m, 2.43m, etc. |
|
Fence panel length |
2.0m, 2.5m, 3.0m, etc. |
|
Wire diameter |
3mm-5mm |
|
Hole opening |
50x150mm, 50x200mm, 55x150mm, 55x200mm |
|
Quantity of curves |
2,3,4 |
|
V-mesh panel |
0.5x2m, 0.5x2.5m, 0.5x3m, etc. |
|
Post height |
1.6m, 2.0m, 2.2m, 2.5m, 2.8m, 3.0m, 4.0m |
|
Post size |
(SHS) 50x50mm, 60x60mm; (RHS) 40x60mm, 60x80mm |
|
Post thickness |
1.5mm, 2.0mm, 2.5mm |
|
Material |
Low carbon steel wire, galvanized wire ; steel pipe |
|
Surface treatment |
Galvanized, PVC coated, powder coated. |

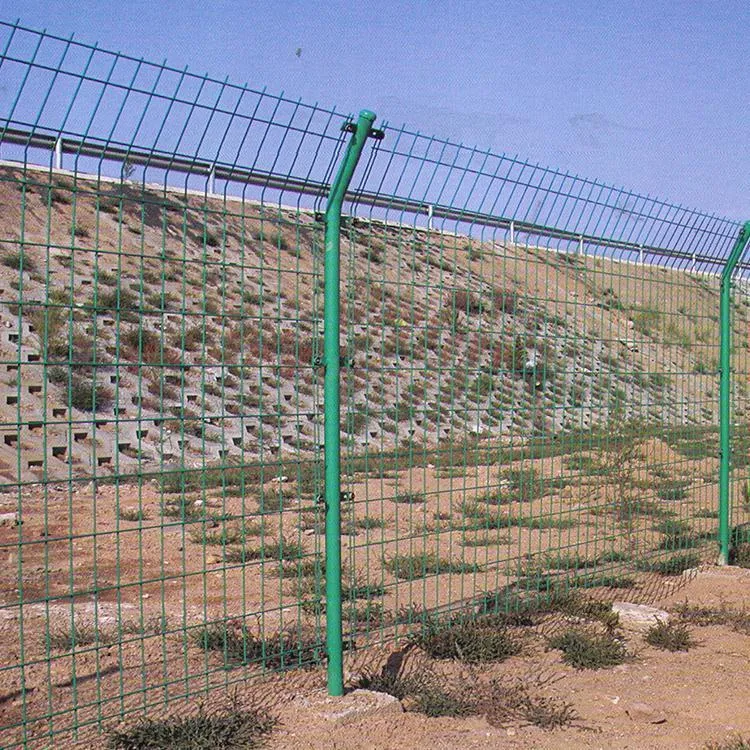

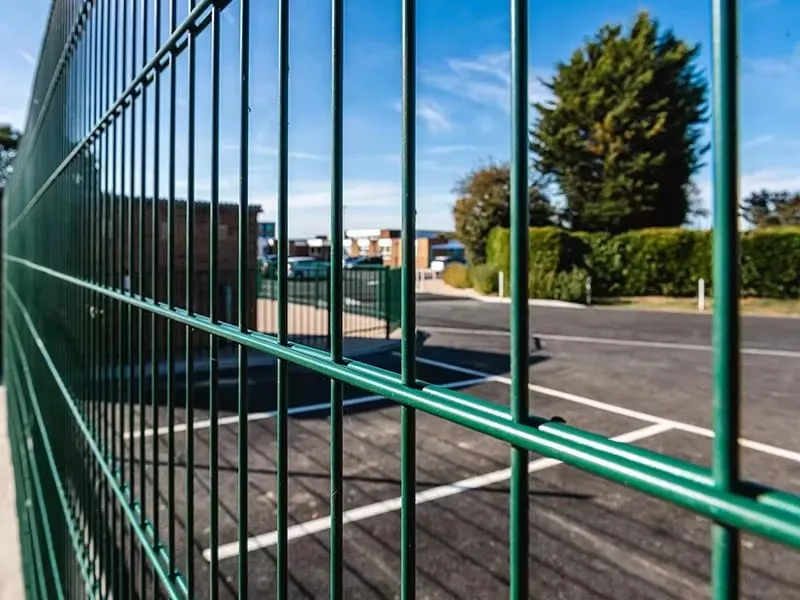

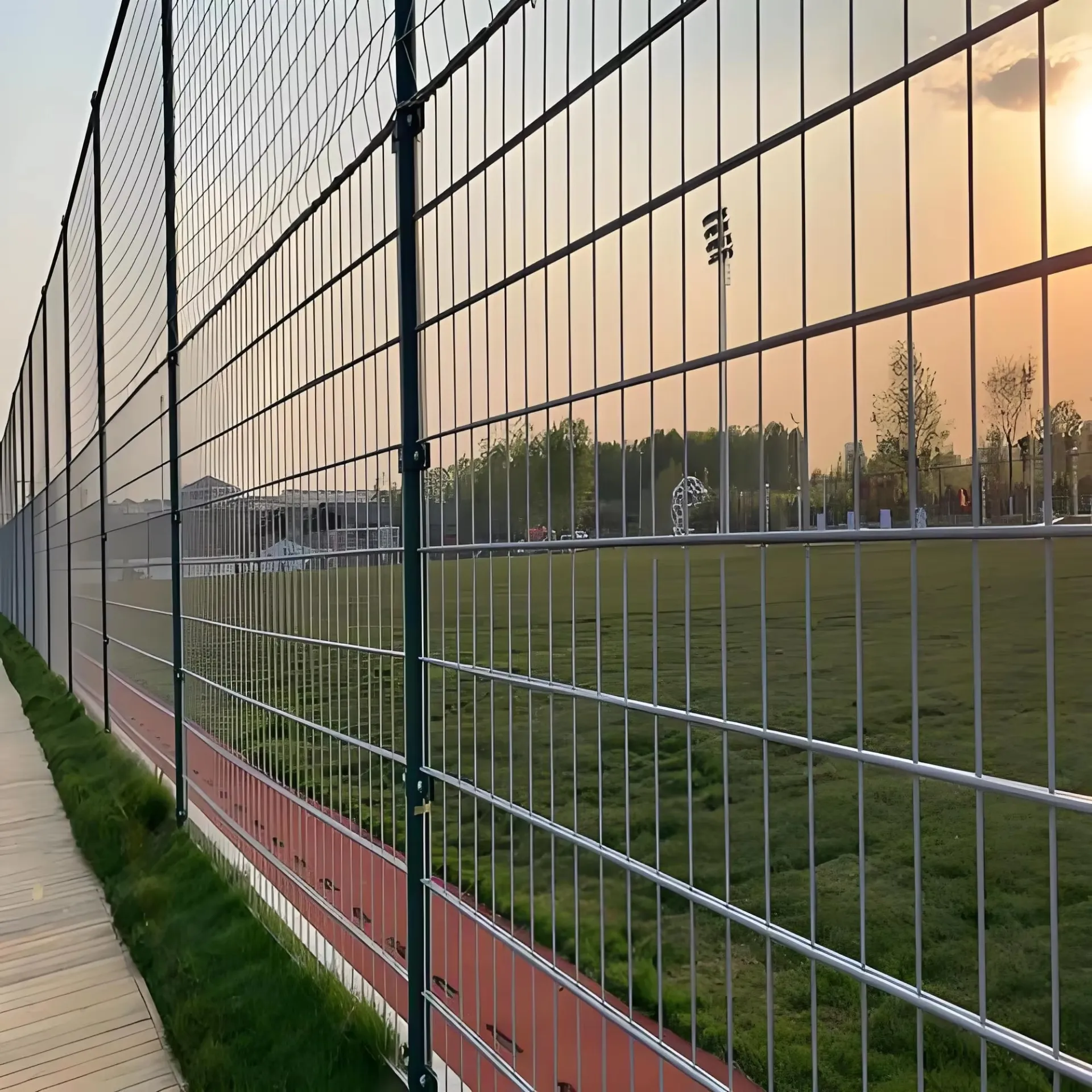

Double-wire Fences
Feature a simple yet highly effective structure. They are formed by connecting two parallel steel wires at regular intervals to create a grid pattern. Made of high-quality galvanized steel wires, they possess excellent corrosion resistance and can adapt to various climatic conditions. The spacing of the grid can be flexibly adjusted, making them suitable for places such as residential communities, industrial parks, and farms, providing basic isolation and protection functions. They are easy to install, and you can choose between fixing them with wire ties or using special connectors, which can effectively save installation time and labor costs.

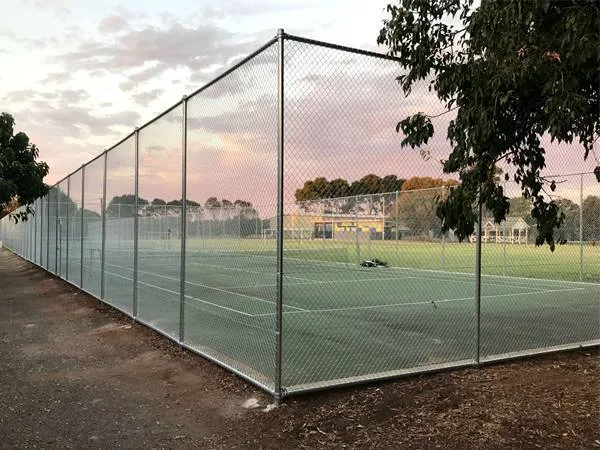

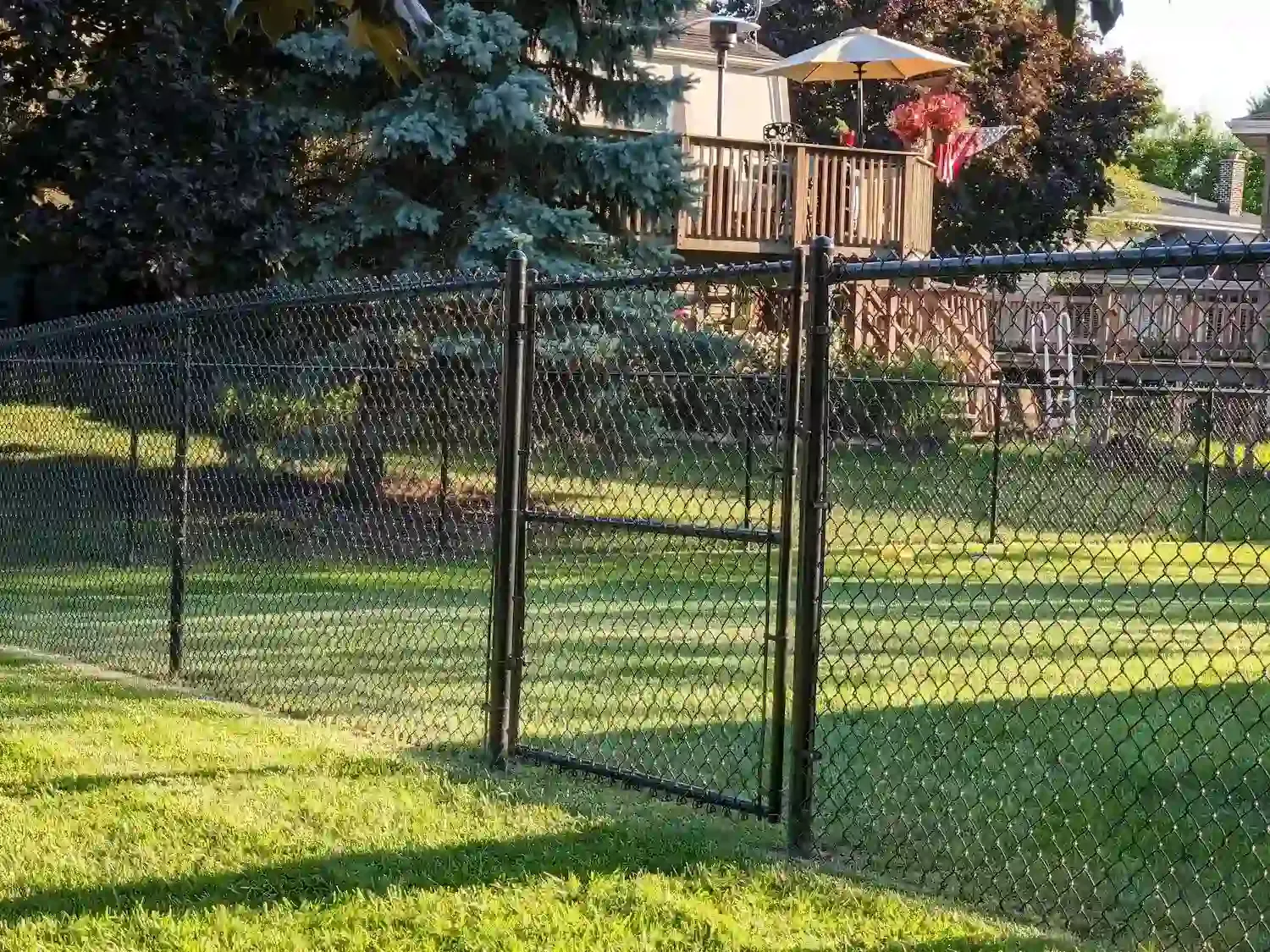

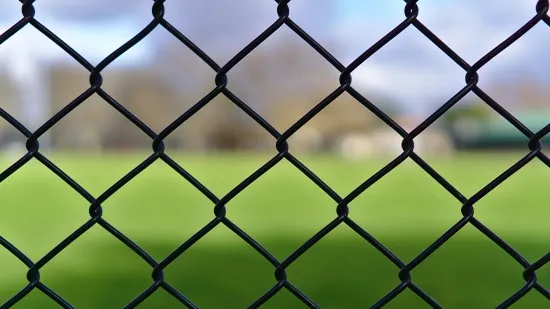

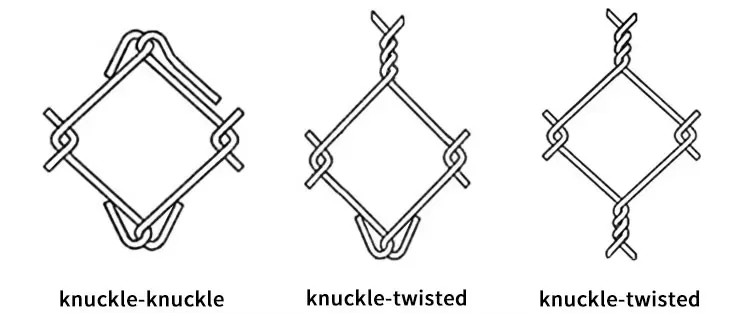

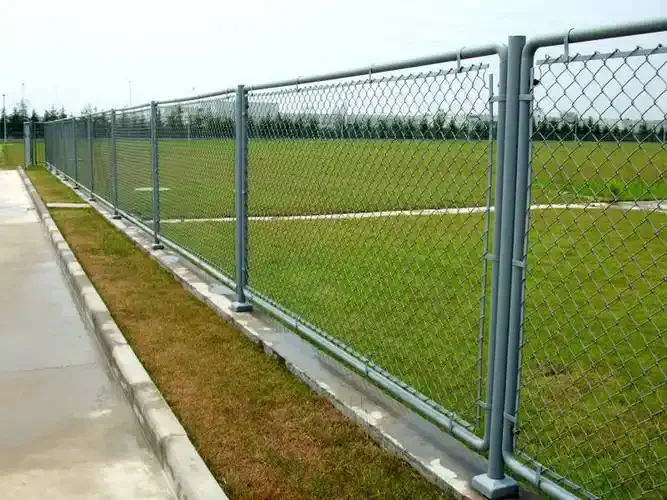

Chain Link Fences
The unique diamond-shaped grid structure endows them with good flexibility and shock absorption performance. They are made of galvanized or PVC-coated steel wires. The galvanized type has excellent rust resistance, and the PVC-coated type not only has enhanced corrosion resistance but also offers a rich variety of color options, combining both aesthetic and protective advantages. It can withstand a certain degree of impact and abrasion. Widely used in sports venues (such as tennis courts and basketball courts), construction site enclosures, and residential garden fences, the height and length can be customized according to your needs.
No matter which type of fence you need, we provide comprehensive customization services. From specifications and dimensions to materials and surface treatments, everything can be personalized and produced according to your specific requirements, creating the most suitable security fence solution for your usage scenarios.
-
